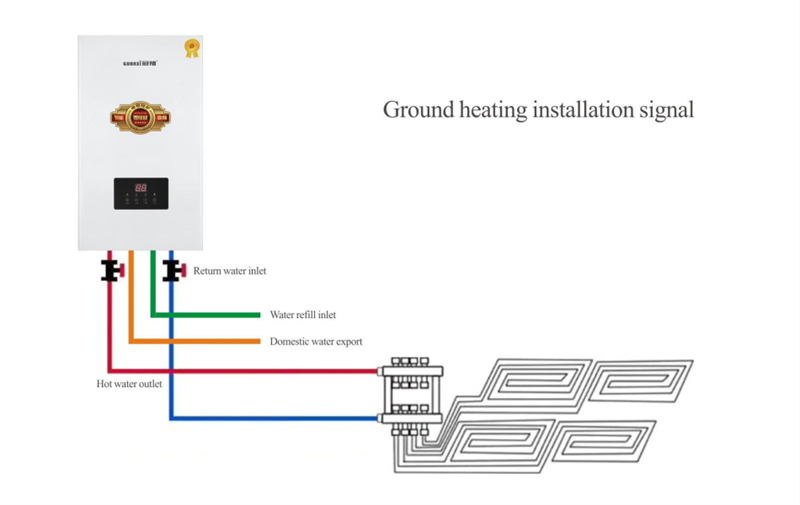

Underfloor heating

House warm heater

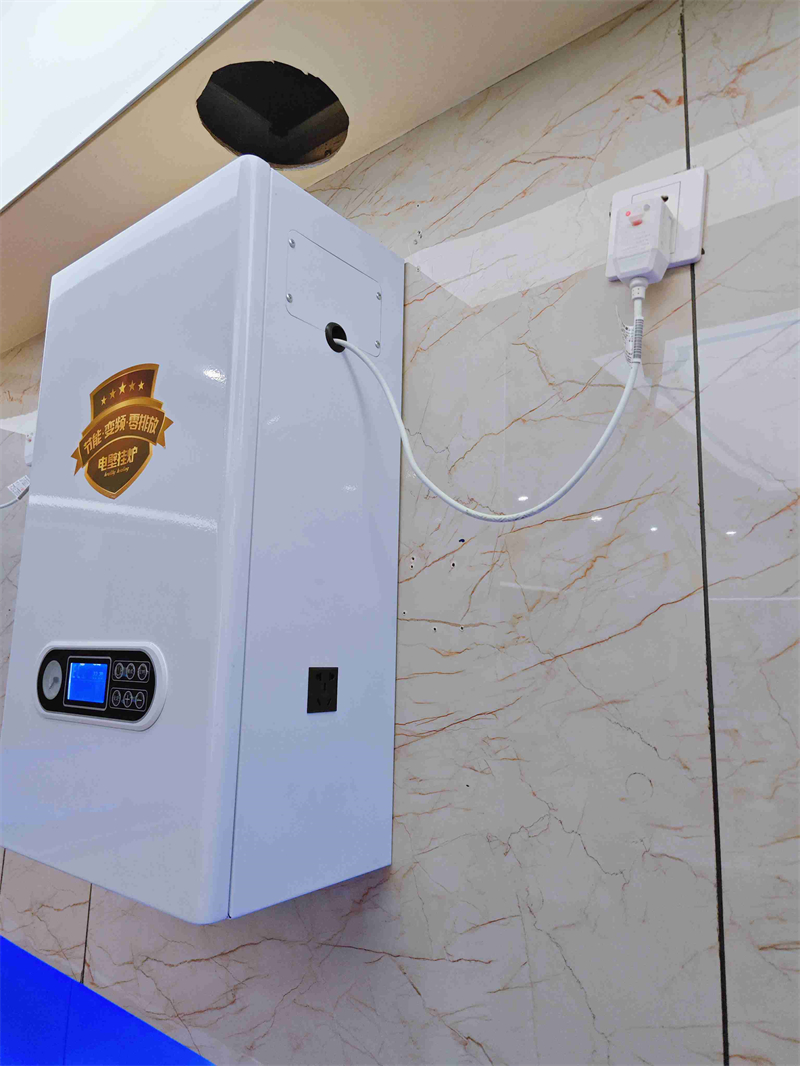

Electric Hot Water Boiler Combi 12KW Wall Hung Electric Central Heating System Boiler For Home

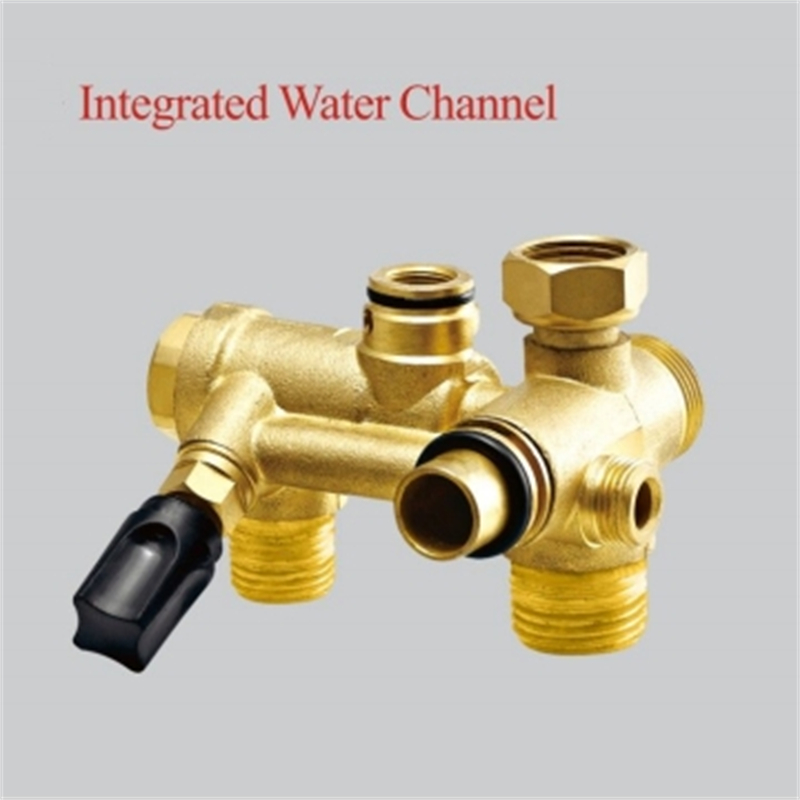

House Heating Boiler Underfloor Heating Electric Boiler Wifi Remote Control Double Water Channel

Description:

1.     Closed design, easy to use, electronic components and main accessories from Germany, with a design life of 10 years.

2.     Timed constant temperature/ temperature difference sectional control design, ecnomic and environmental protection, LED display, WIFI remote control (touch screen, easy to operate).

3.     Power off memory function: power on at any time after power off, and the machine can operate according to the original set parameters.

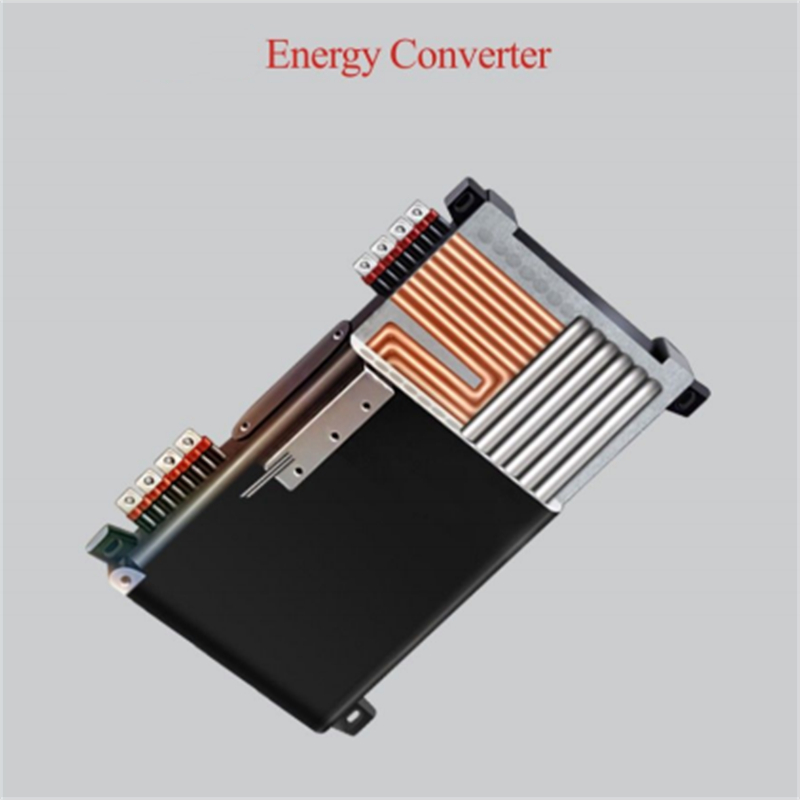

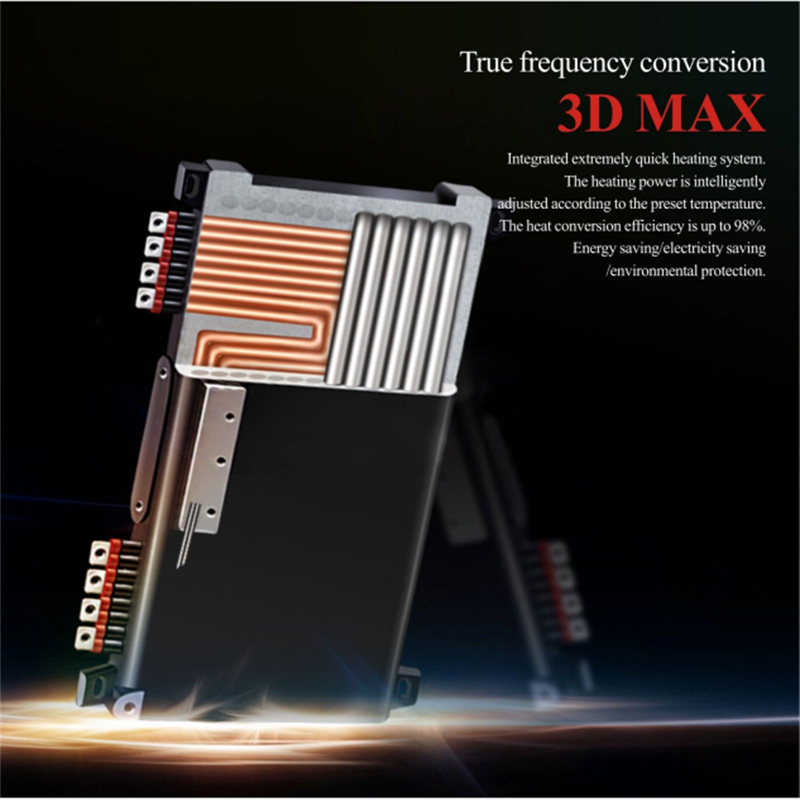

4.     Innovative cloud heating technology: heat conversion efficiency reaches 97%, and heat utilization rate raches 100%.

5.     Intelligent anti freezing system: if the system temperature continues to drop to 5℃,the wall mounted furnace will automatically start to prevent the wall mounted furnace and heating system from freezing.

6.     Triple anti leakage protection, water and electricity isolation design, water pressure protection, safe use throughout.

7.     Fault code indication: the machine has self inspection function. When the machine fails, the display will display the fault code, which is convenient for mainteance.

Technical Parameter:

Model/Type: Pressure bearing forced circulation electric wall hanging water boiler/double water curcuit

Power/Voltage: 6~12KW (adjustable) 220V/50Hz, 12~24KW (adjustable) 380V/50Hz

Inlet and outlet pipe diameter: 3/4 external thread (3L/min, 55 hot water)

Pump yard: 5 ~7m

Product size: 410 * 230 * 700mm

Heating area: 70 ~ 110

The system pressure: Less than or equal to 0.3mpa

Scope of functions: Domestic hot water, residence, office building, hotel, school, etc.
